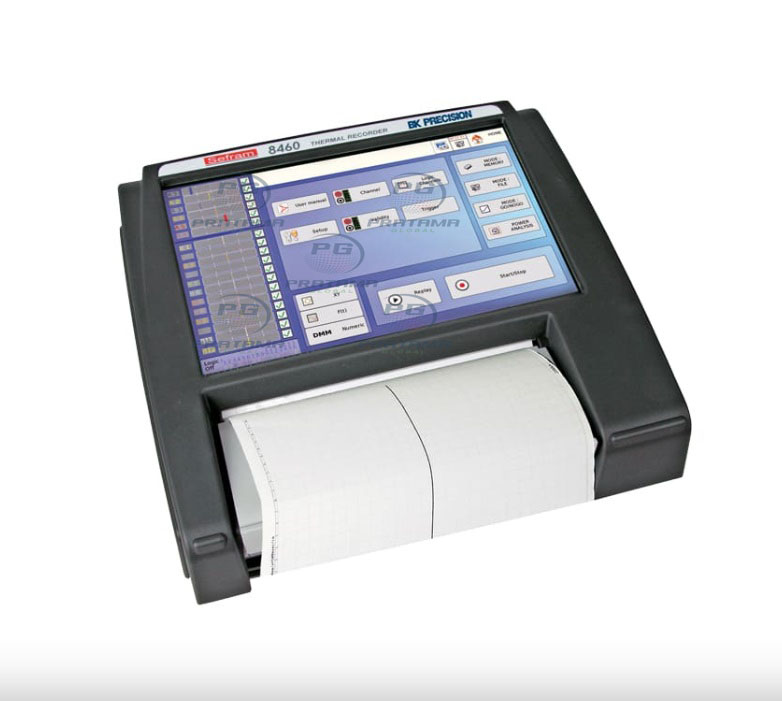

BK Precision 8460 High-Speed Data Acquisition System

BK Precision 8460 High-Speed Data Acquisition System with Printer for Industrial Testing

The BK Precision 8460 is a powerful high-speed data acquisition and recording system designed for engineers, industrial testing, research laboratories, manufacturing environments, and power analysis applications. Featuring a large touchscreen display, integrated thermal printer, and modular input configuration, this advanced recorder delivers reliable real-time monitoring, high-speed signal capture, and professional data analysis in one versatile platform.

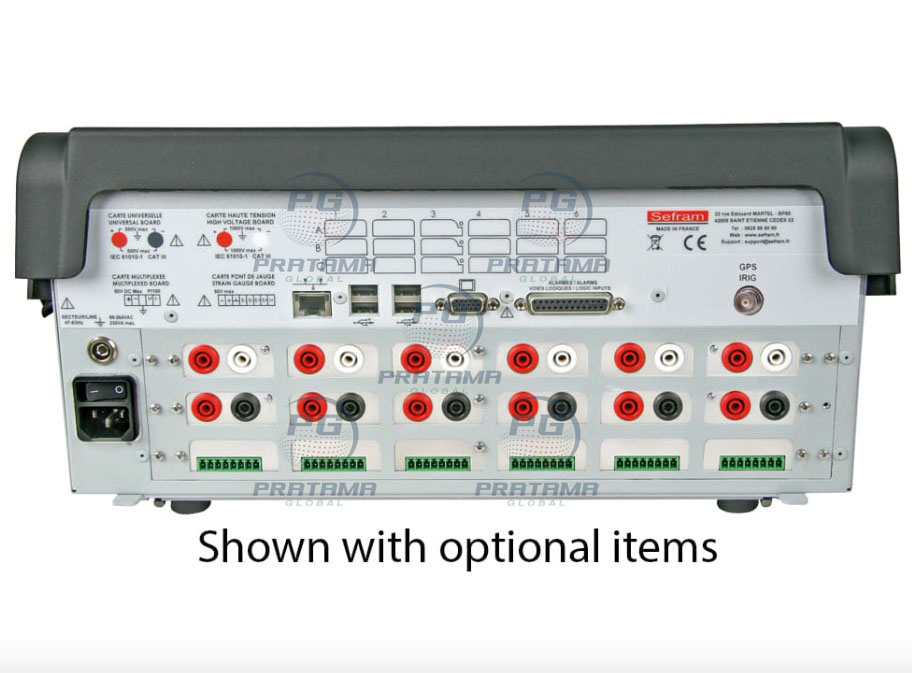

Built for flexible measurement applications, the BK Precision 8460 supports up to 36 analog inputs using interchangeable measurement boards for voltage, current, temperature, and strain measurements. Its 3-slot modular design allows users to configure the system with universal, isolated high-voltage, multiplexed, or strain gauge input modules based on specific testing requirements.

For demanding high-speed applications, the system can simultaneously acquire and record up to 18 channels at 1 MSa/s in memory mode, making it ideal for capturing transient events and fast-changing signals. Advanced trigger and recording functions support analog level or edge triggering, logic conditions, and scheduled start/stop recording for automated test workflows.

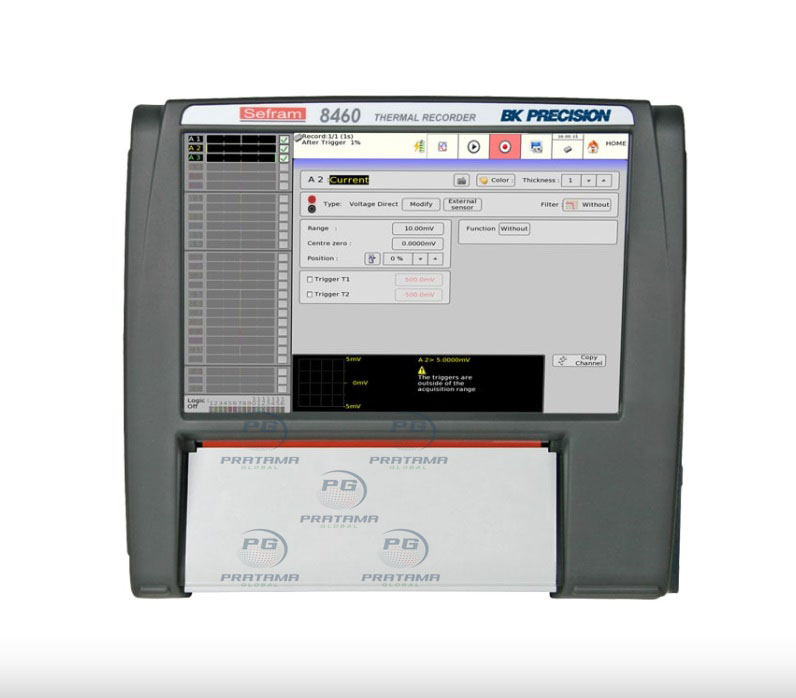

The integrated 270 mm thermal printer enables immediate wide-format data printing for documentation, troubleshooting, and analysis. Measurement data can also be viewed graphically or numerically on the 15.4-inch touchscreen display, stored to the internal hard drive, or transferred remotely through built-in LAN connectivity or optional USB Wi-Fi support.

Built-in analysis tools include mathematical functions and dedicated power quality analysis for single-phase and three-phase electrical systems. Users can analyze voltages, currents, harmonics, vector diagrams, and calculated power values directly from the instrument.

Key Features

High-speed data acquisition and recording system
Integrated 270 mm thermal printer
Large 15.4-inch touchscreen display
Supports up to 36 analog inputs
Modular 3-slot measurement board configuration
Compatible with voltage, current, temperature, and strain modules
Simultaneous 18-channel recording at 1 MSa/s
Advanced trigger and scheduling functions
Built-in power quality analysis tools
LAN remote access and optional USB Wi-Fi support

Benefits

Capture high-speed and transient signals accurately
Simplify industrial testing and data analysis
Print real-time measurement records instantly
Flexible modular setup for multiple applications
Reduce storage usage with dual-file recording functions
Improve workflow efficiency with remote monitoring capability

Ideal Applications

Industrial process monitoring
Electrical power analysis
Research and laboratory testing
Manufacturing diagnostics
Strain and temperature measurement
Automated test and recording systems

What’s Included

This package includes the BK Precision 8460 instrument, power cord, rugged carrying case, connectors, adapters, stylus, screwdriver, calibration certificate, test report, and setup accessories.
