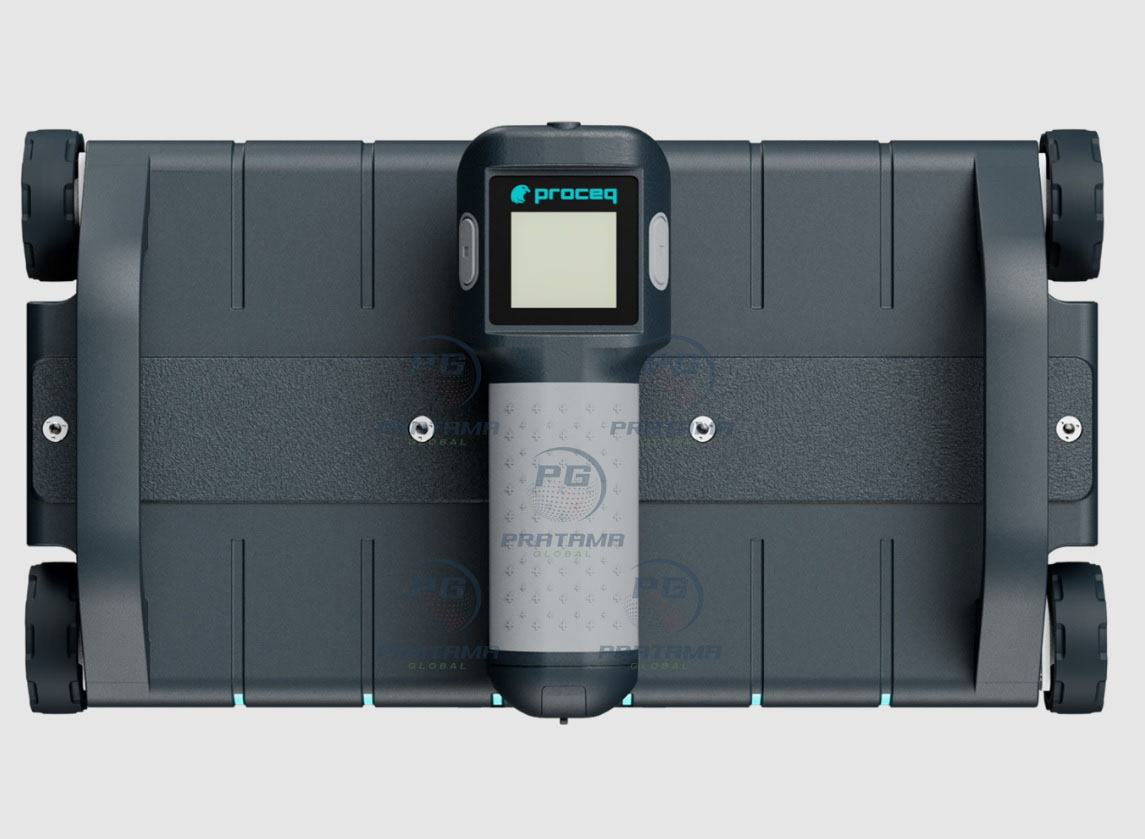

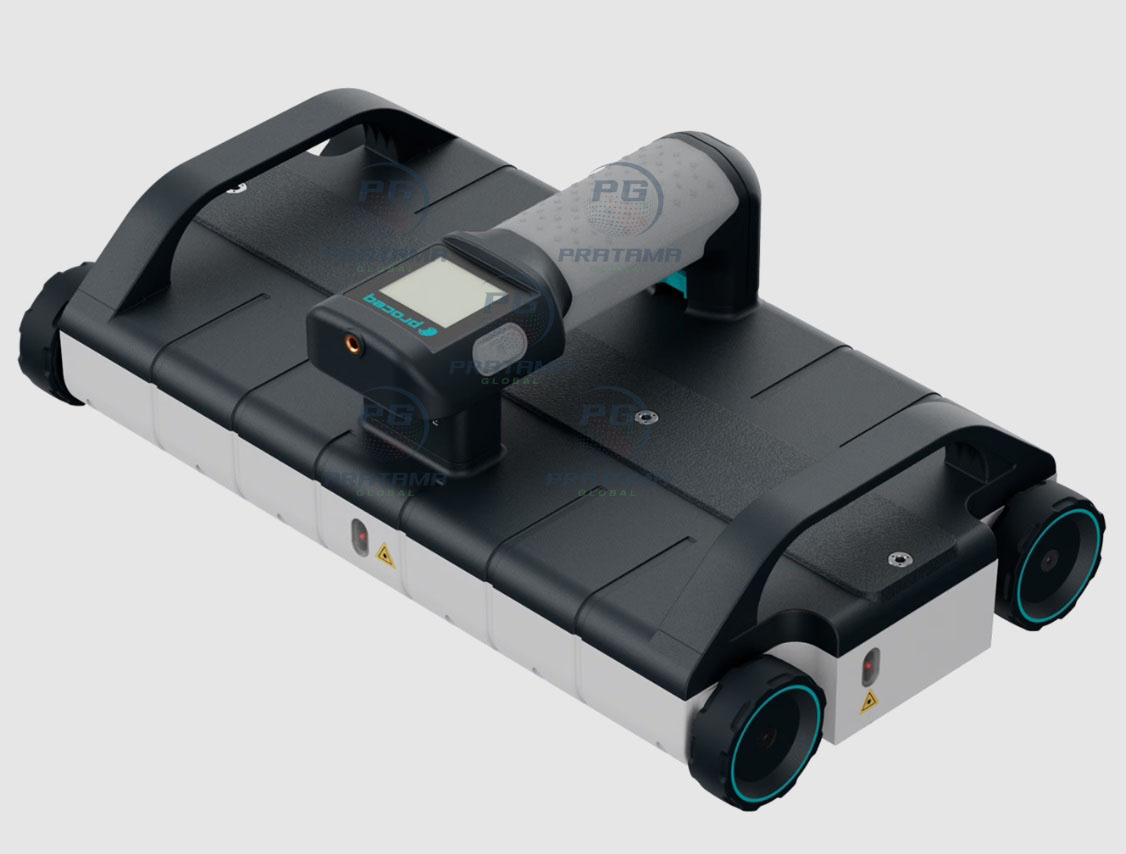

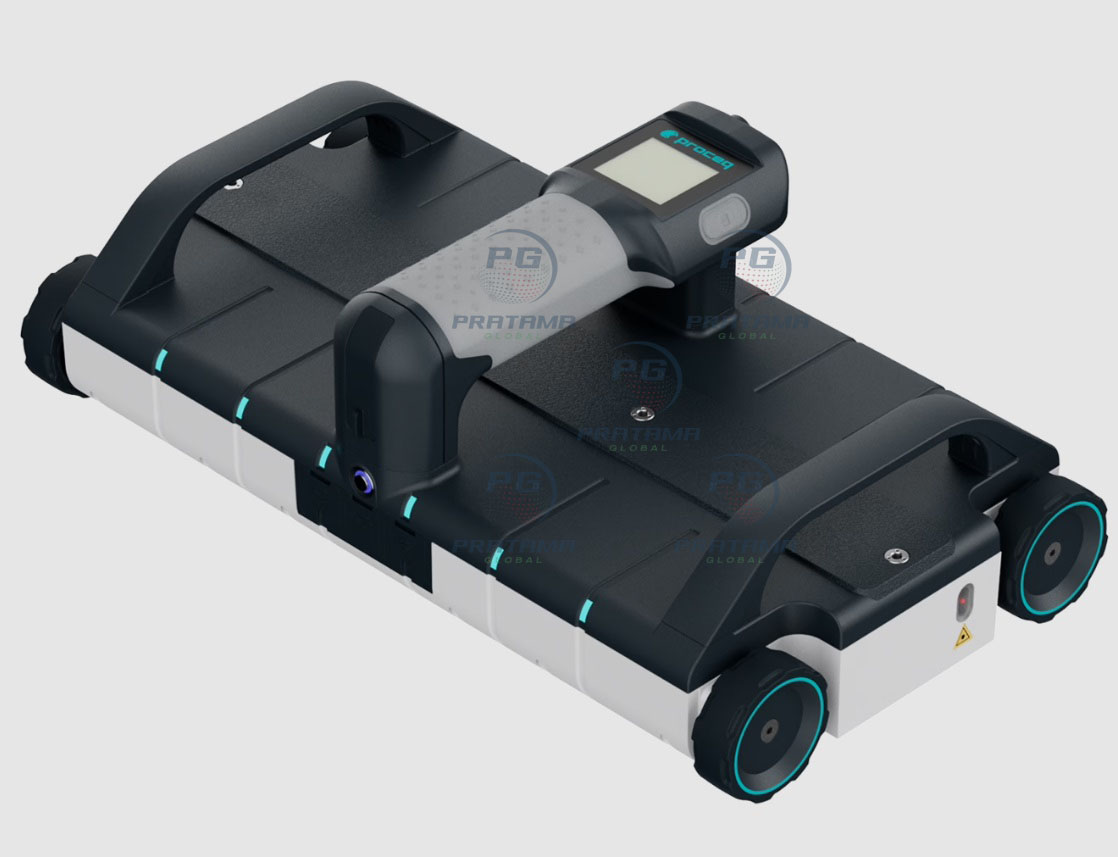

Proceq GP8100 Ground Penetrating Radar

Buy Proceq GP8100 Ground Penetrating Radar – Advanced Concrete Scanning & Inspection System

The Proceq GP8100 Ground Penetrating Radar (GPR) is a high-performance concrete inspection and subsurface scanning solution designed for fast, accurate, and non-destructive testing (NDT). Engineered with advanced stepped-frequency continuous-wave (SFCW) radar technology, the GP8100 delivers exceptional imaging clarity, deep penetration, and rapid data collection for construction, civil engineering, infrastructure assessment, and utility detection applications.

With an effective 25 cm scan width and up to 80 cm penetration depth, the GP8100 dramatically increases productivity by covering more area in less time. One superline scan can replace up to six traditional line scans, helping inspectors, engineers, and contractors complete projects faster and more efficiently.

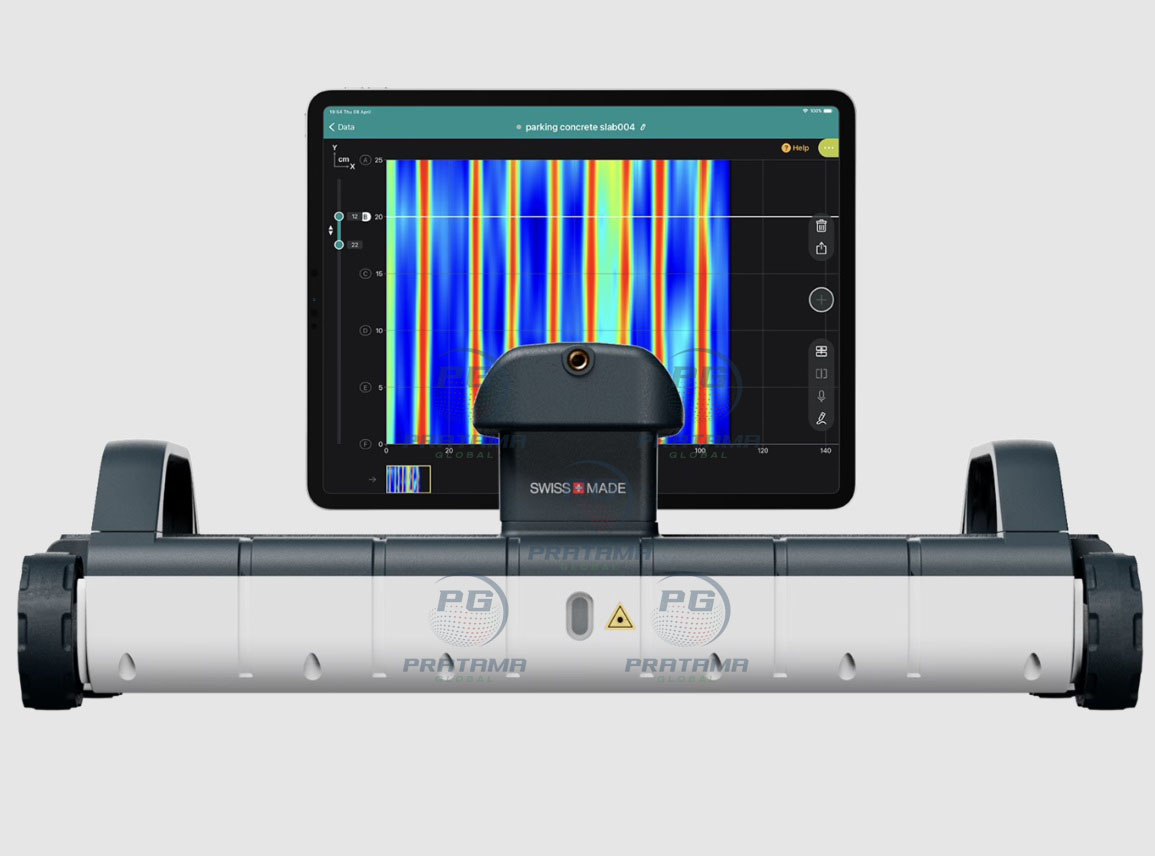

The powerful 1,200 scans per second acquisition rate enables ultra-dense data collection, producing highly detailed subsurface images for accurate detection of rebars, conduits, post-tension cables, voids, and embedded objects of various sizes. The intuitive Superline Scan View simplifies object detection and concrete surface marking, improving workflow and reducing inspection time.

Integrated with the advanced Proceq GPR App, users gain access to multiple measurement and visualization modes including Line Scan, Superline Scan, Area Scan, A-Scan, Migrated View, Split View, Time-Slice View, 3D View, and Augmented Reality (AR) visualization for enhanced analysis and reporting.

Key Features
Fast and efficient concrete scanning
Up to 80 cm penetration depth
25 cm effective scan width
1,200 scans per second high-density data capture
Advanced 3D and AR visualization
Easy object detection and surface marking
Lightweight and portable design
Flight-safe removable battery system
Ideal for NDT, rebar detection, utility locating, and structural assessment

Technical Specifications

Radar Technology
Stepped-frequency continuous-wave (SFCW) GPR
Frequency range: 400 – 4000 MHz
Measurement Modes
Line Scan
Superline Scan
Area Scan
Visualization Modes
A-Scan
B-Scan
Migrated View
Non-Migrated View
Split View
Time-Slice View
3D View
Augmented Reality (AR)
Performance
Penetration depth: Up to 80 cm / 31.5 in
Scan rate: 1,200 scans per second
Power
Flight-safe removable battery pack
8x AA NiMH batteries
Dimensions & Weight
Dimensions: 41.5 × 22.5 × 13.2 cm
Weight: 3.0 kg (excluding battery pack)

The Proceq GP8100 is the ideal solution for professionals seeking reliable, high-speed, and high-resolution GPR scanning technology for concrete inspection and subsurface analysis.
