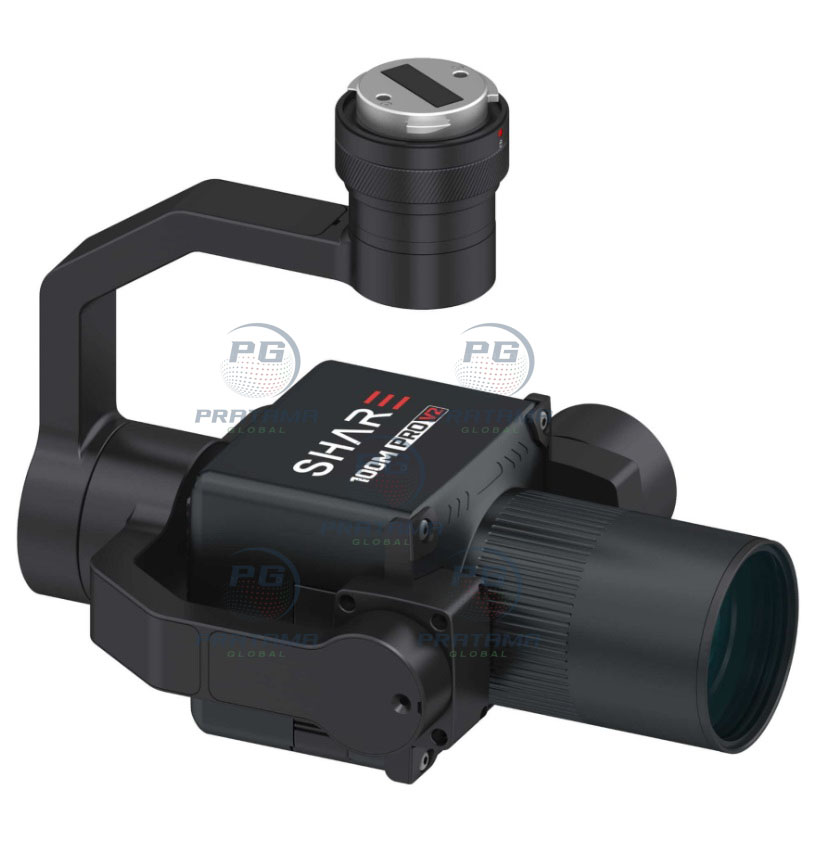

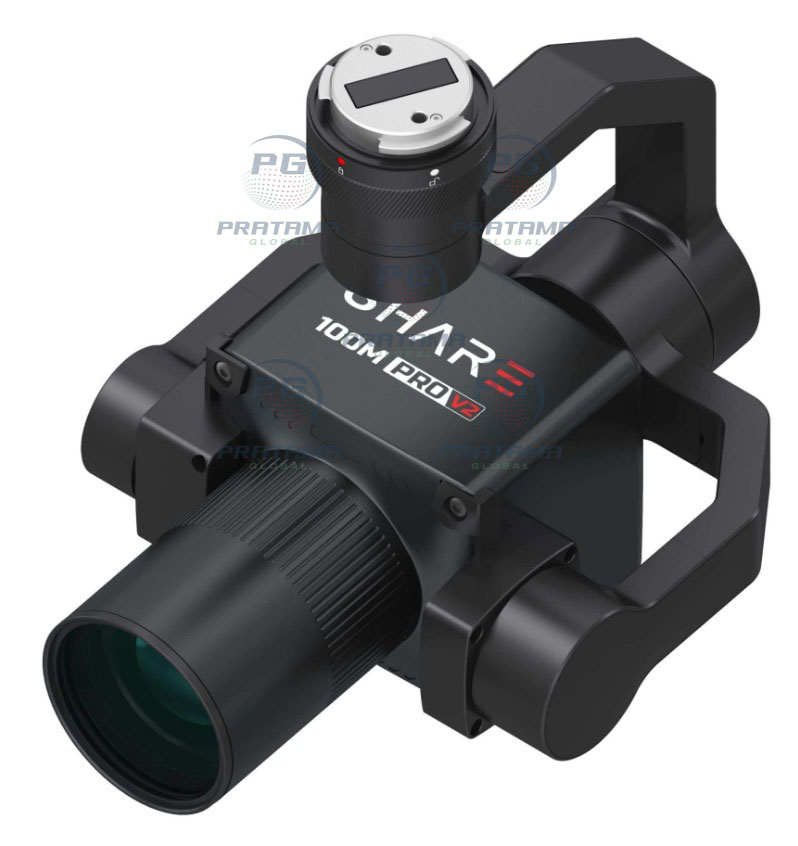

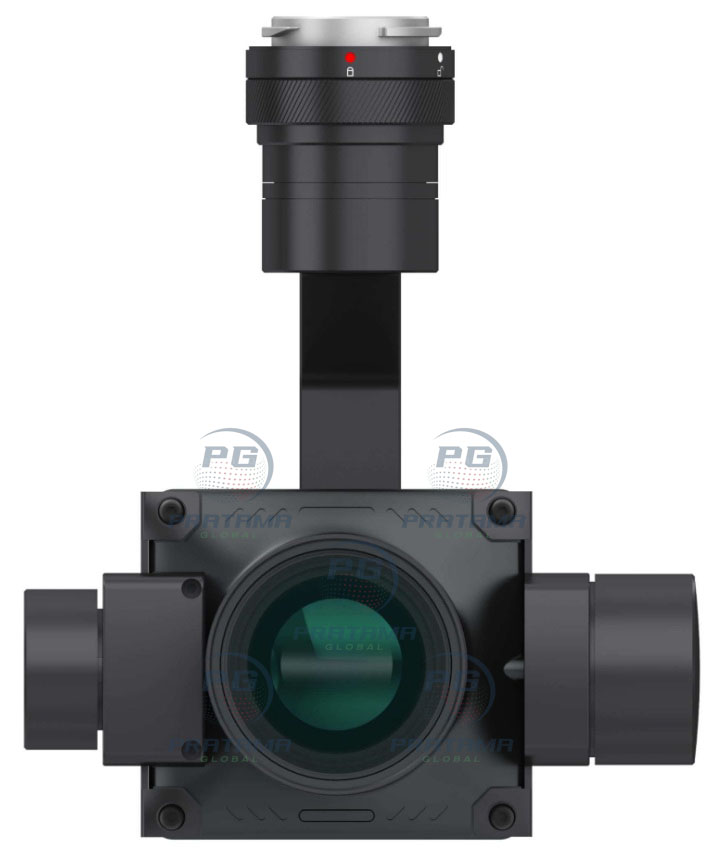

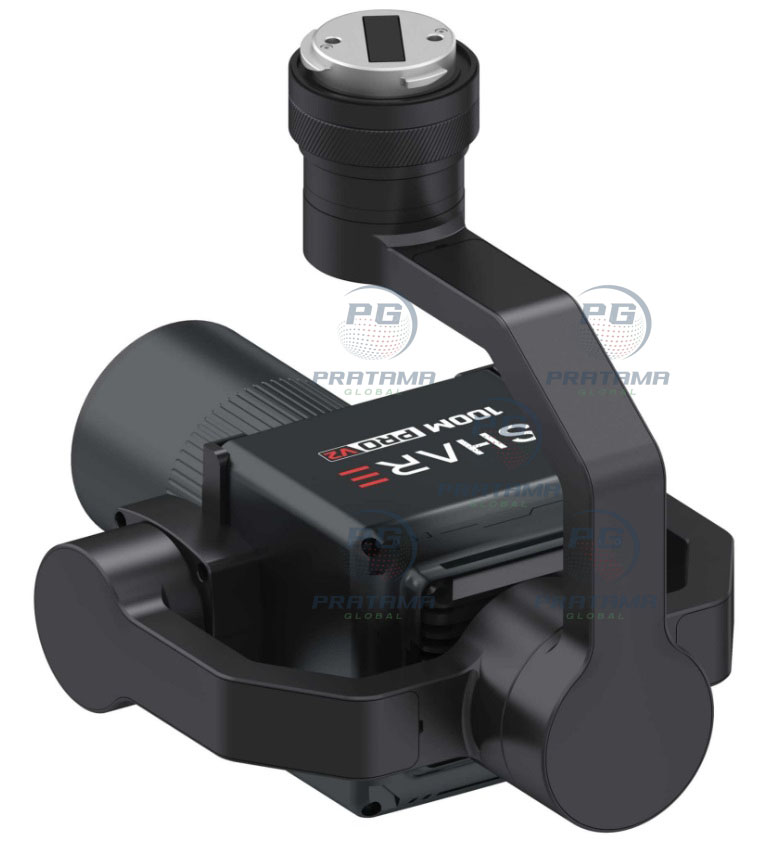

SHARE 100M PRO V2 Medium-Format Photogrammetry Camera

SHARE 100M PRO V2 Medium-Format Photogrammetry Camera (Fixed Focus) for UAV Mapping & Aerial Survey

Elevate your aerial mapping with the SHARE 100M PRO V2—a high-performance 102MP medium-format photogrammetry camera built for precision, stability, and large-area efficiency. Designed for seamless integration with DJI Matrice 400 and Matrice 350 RTK, this professional solution delivers exceptional image clarity for surveying, mapping, and digital twin creation.

Why Choose SHARE 100M PRO V2?
Capture ultra-detailed imagery with a large medium-format sensor and achieve smaller GSD at higher altitudes—cover more ground in less time. The integrated 3-axis gimbal ensures sharp, perfectly aligned images, even in dynamic flight conditions.

Key Features:

102MP medium-format sensor for superior detail and accuracy

Smart 3-axis gimbal for stabilized, distortion-free imaging

TimeSync 2.0 for precise positioning and GCP-free workflows

Flexible lens options: 50 mm standard or 70 mm customizable

512GB integrated storage for large datasets
Full camera control via Bluetooth or DJI Pilot

4K video recording (30 fps) for inspections and documentation
Durable IP5x-rated construction for field reliability

Compatible with DJI Matrice 400, M350 RTK & various UAVs

Shutter life rated for 500,000 cycles

Optimized for Productivity
Increase mapping efficiency with high-resolution output (11648 × 8736) and consistent imaging across missions. Fast data capture and reliable performance make it ideal for large-scale surveying, construction, and infrastructure projects.

Technical Highlights:

Sensor: 43.8 × 32.9 mm (medium format), 3.76 µm pixel size
ISO Range: 50–3200 (auto/manual)
Shutter Speed: 1/200 to 1/16000 s
Storage: 2 × 256GB integrated module
Interfaces: DJI Skyport, USB-C, WiFi, Bluetooth
Operating Temp: -20°C to 65°C

Operate in compliance with local drone regulations and airspace laws. Respect privacy, avoid restricted areas, and ensure trained operation. Intended for professional aerial surveying and mapping applications.

Upgrade your photogrammetry workflow with the SHARE 100M PRO V2—precision imaging, stabilized performance, and reliable results.
